True North Wood Stoves

True North wood stoves offer an exceptional cost to performance ratio. Featuring entry-level tubes as part of the combustion system, the TN10 and TN20 are the cost effective solution for the price-minded wood burner. Each wood stove is constructed with quality 10-guage steel, a gasketed cast iron door, clean glass airwash system, and engineered for high efficiency.

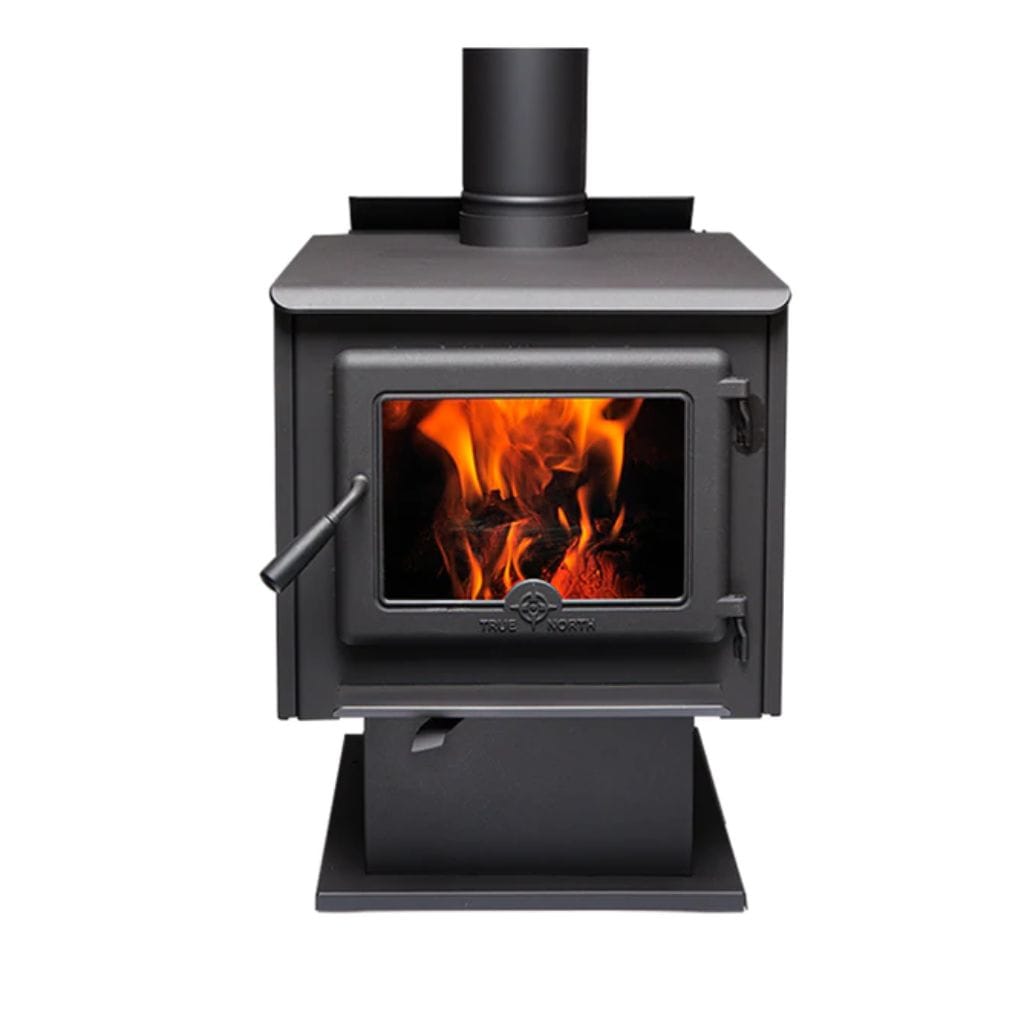

TN20 B Series Wood Burning Stove

The TN20 features entry-level tubes as part of the combustion system, offering a cost effective solution for the price-minded wood burner. Constructed with standard 10-gauge steel, the TN20 features a gasketed cast iron door, clean glass airwash, and high efficiency. Available with legs or a pedestal base, the TN20 offers an exceptional cost to performance ratio.

Technical Data

Heat Output Cord Wood (BTU) 60,000 BTU
Heat Output EPA (BTU) 13,900-29,200 BTU
Efficiency 72.7% (HHV)
Emissions 1.6 g/hr.
Firebox Size 2.0 cu.ft.
Log Size (max.) 18 in.

Standard Features

EPA 2020 Certified
Reliable, durable catalytic-free technology
Air wash system for super clean ceramic glass
Inside and outside combustion air capable
Heavy plate-steel top
Mobile home approved
Single-Lever Air Control
Cast iron door

Design Options

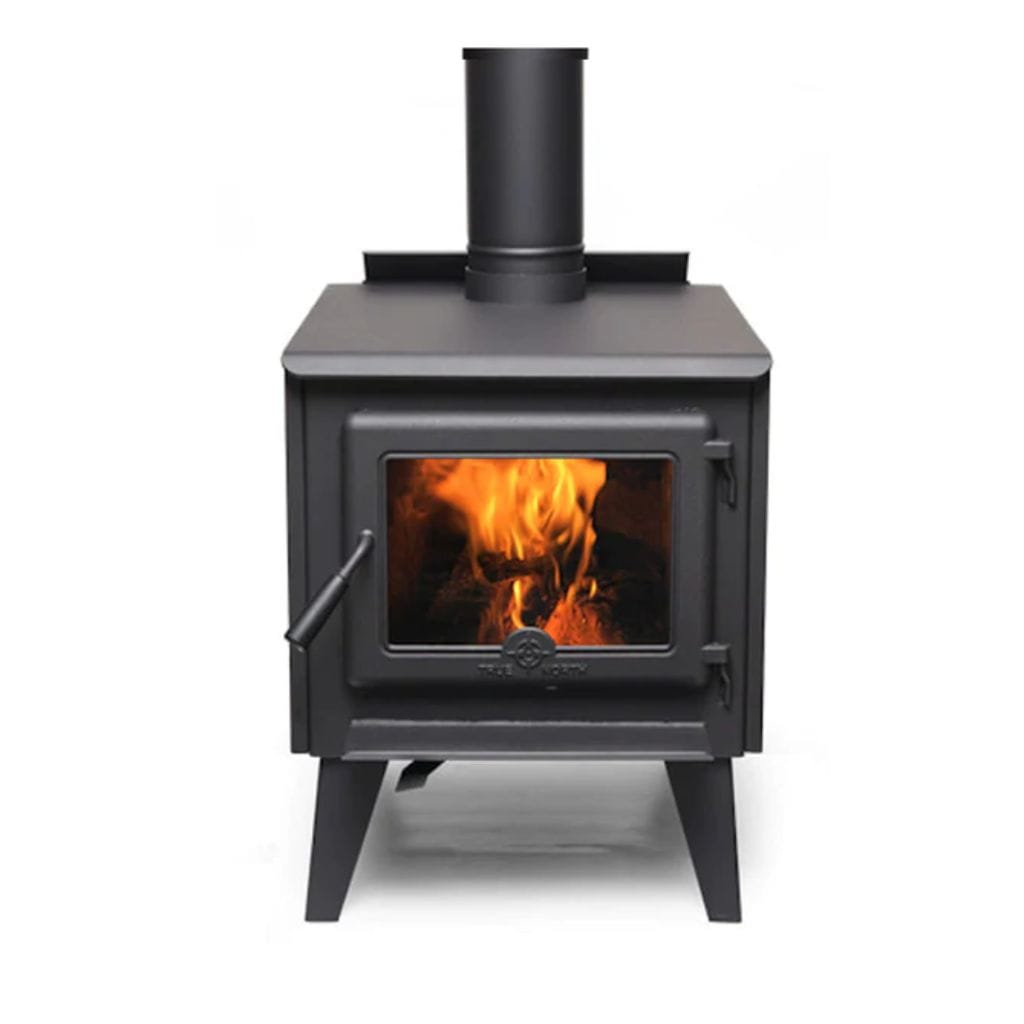

Choice of Metallic Black Legs or Pedestal Base

Performance Options

60 cfm convection blower

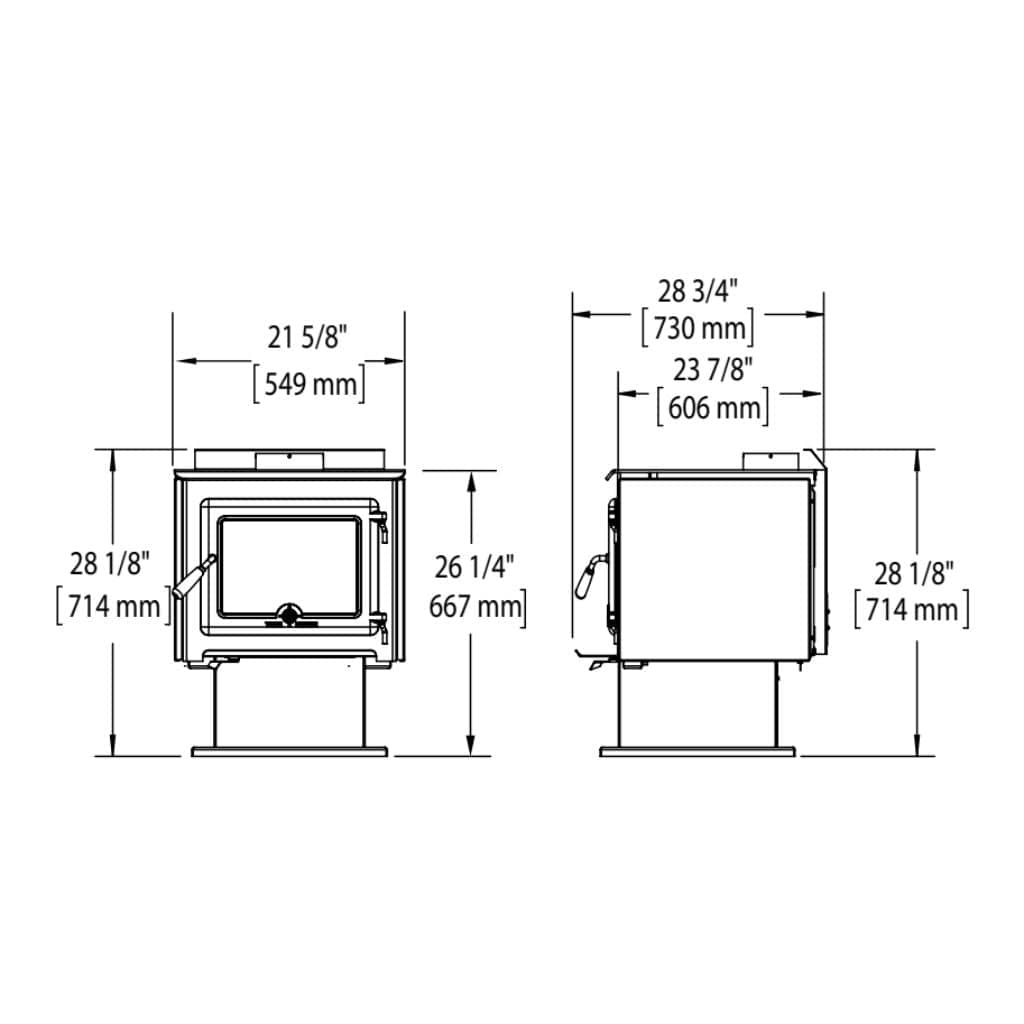

Specifications

Width	21 5/8"
Height	28 1/8"
Depth	28 3/4"
Fuel Type	Wood
Vent Type	Vented
Finish	Black
Installation Type	Freestanding
BTU Output	60,000

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

Blower Kit

The True North Blower is a great addition to your wood burning stove. This blower works to help circulate hot air throughout the room and is designed for the TN10 and TN20 series wood stoves.

4" Outside Air Adapter

This adapter is meant to help bring in fresh, outside air for the sake of combustion and this 4-Inch adapter specifically designed to work with the TN20 series wood stove.

Click to see Venting Components

DuraVent 45-Degree DVL Double-Wall Black Elbow

Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Offsets obstructions as needed.
Elbows angles are adjustable.

DuraVent 45-Degree DuraBlack Elbow

Offsets obstructions as needed.
Elbows angles are now adjustable.
Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.

DuraVent 90-Degree DVL Double-Wall Black Elbow

Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Offsets obstructions as needed.
Elbows angles are adjustable.
Not recommended for rear exit appliances.

DuraVent 90-Degree DuraBlack Elbow

Offset obstructions as needed or to orient the stovepipe horizontally through the wall installation.
Elbows angles are now adjustable.
Adjustable elbows are manufactured drip-free so creosote travels back to the stove as intended.
Not recommended for rear exit appliances.

DuraVent DVL Double-Wall Black Stove Pipe Length

Length: 6", 12", 18", 24", and 48"
Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling).
Subtract ¾” for installed length.
Constructed with a stainless steel inner wall.

DuraVent DuraBlack Single-Wall Black Pipe Length

Length: 12", 24" and 48"
Use for a single-wall connector pipe.
Requires 18” clearance to combustibles.
Subtract 1 1⁄4” from length to calculate the installed length.

DuraVent DVL Double-Wall Black Stove Pipe Telescoping Length

Length: 29" - 46", 40"- 68"
Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Use for a two-piece installation from stove to ceiling support box or finishing collar.
No cutting is required.

DuraVent 4" Length DuraBlack Stove Top Adapter

Use to adapt DuraBlack stovepipe to appliance flue outlets.

DuraVent DBK-DS DuraBlack Damper Section

Install at, or close to, the stove outlet in-line.
5" pipe section with the damper pre-installed.

DuraVent DuraBlack Slip Connector With Trim

Used to adapt DuraBlack pipe to 6” - 8” Ceiling Support Box, including DuraTech, and DuraPlus.
The Slip connector can also be added to 6” - 8” DuraTech finishing collar.
Adds 3”-13” of length to rigid pipe.
Provides a strong mechanical connection.

DuraVent DBK-TC DuraBlack Trim Collar

Use as a decorative Trim Collar for DuraBlack connection to the chimney.

DuraVent DuraBlack 6" Diameter Telescoping Length With Trim

Use for a two-piece installation.
Connects directly from stove to ceiling support box or finishing collar.
Adjusts from 44”- 68”.
No cutting is required.
Available in stainless steel (SS).

DuraVent 6"-8" DuraBlack Slip Increaser with Trim

Use to adapt from 6” DuraBlack to 8” DuraTech, DuraPlus, or DuraLiner at the ceiling support box or finishing collar.
Adds 5" - 15" of length

DuraVent 6" DVL Double-Wall Adjustable Black Stove Pipe

Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Use to add length to DVL pipe.
6” pipe adds 2”-5” of length.

DuraVent DVL Double-Wall Black Stove Pipe Adapter

Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Connects DVL pipe to the appliance flue outlet.
Use as a stove adapter.

DuraVent DVL/DuraBlack Chimney Adapter With Trim

Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
The adapter will work with all 6”-8” DuraPlus, and 7”-8” DuraTech installations.
Painted black.

DuraVent DVL Double-Wall Black Adapter/Damper Section

Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Connects DVL pipe to the appliance flue outlet.
Use as a stove adapter.

DuraVent DVL Double-Wall Black Stove Pipe Increaser

Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Use to increase from a smaller appliance flue outlet to a larger diameter chimney or stovepipe.

Warranty

3 years parts (1 year labour)
Firebox, Castings, Glass (glass for thermal breakage only, not impact)
1 year parts and labour
Electrical components and switches
1 year (parts only)
Gaskets, Paint (peeling), Bricks, Baffle tubes, Baffle manifold, Ceramic fibre board

Refer to warranty manual for full details.
