Empire 43" Innsbrook Medium Direct-Vent Clean Face Gas Fireplace Insert

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

Advantages

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from combustion air
• May be used as primary heat source
• Can operate with a remote or thermostat
• Most systems can provide life-saving heat during a winter power outage



Traditional Direct-Vent Inserts

A Direct-Vent Fireplace Insert turns your existing wood-burning fireplace into an efficient gas-fired heat source. Direct-Vent Fireplace Inserts are classified as zone heating appliances. Zone heating is inherently more efficient than your existing wood-burning fireplace or your central furnace.

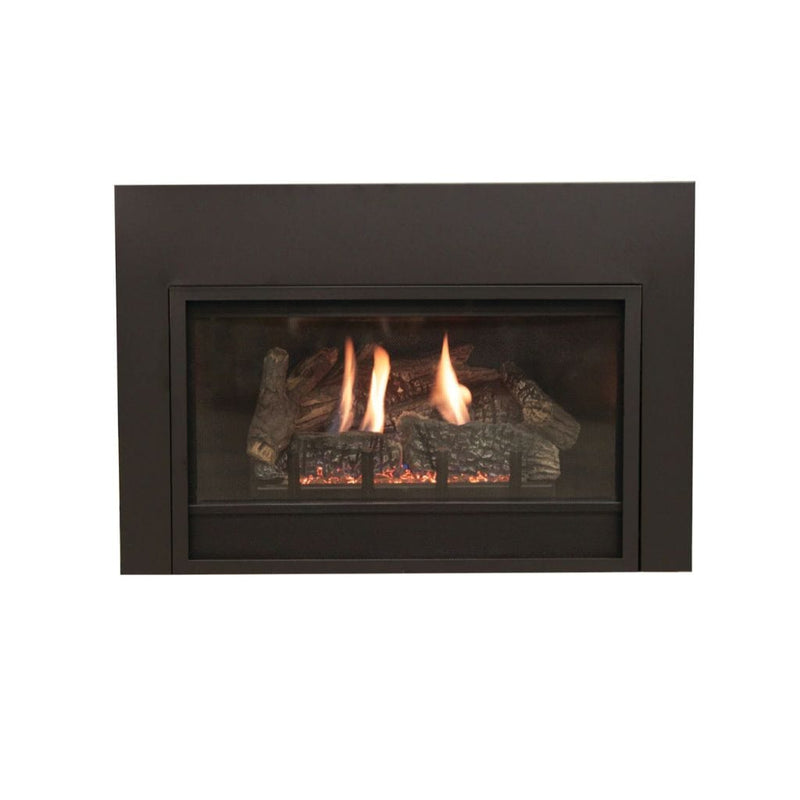

Innsbrook Direct-Vent Inserts (DVC)

Empire Innsbrook Direct-Vent inserts feature optional liners and hand-painted ceramic fiber logs, nestled atop the variable flame height burner, to create an exceptionally attractive traditional fireplace. With inputs of 20,500 Btu, 26,000 Btu, and 28,500 Btu, the Direct-Vent insert’s unique Slope Glaze Burner produces natural flickering flames that dance and delight – warming your heart as it warms your soles.

Available Models

• Up to 26,000 BTUs
• Venting: 3-inch Flex
• Ceramic Glass: 14 1/8 x 28 1/4
• Opening - 21 1/2 H x 31 1/4 W x 16 5/8 D

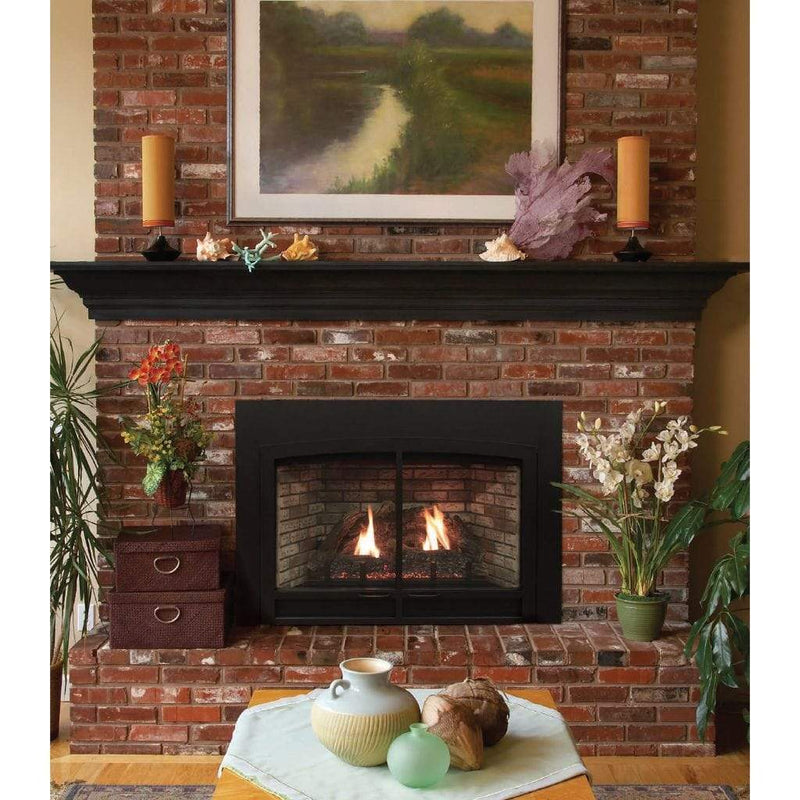

• This unit installs as an insert inside an existing fireplace



Includes:

• Log Set
• Blower
• Barrier Screen



Requires:

• Surround



SPECIFICATION

Model	DVC26
Actual Dimensions	26 1/4 H x 43 W x 17 5/8 D
Fuel Type	Natural Gas / Propane
Vent Type	Direct Vent
Ignition Type	Millivolt / Intermittent Pilot
Installation Type	Insert
Style	Traditional
Input BTU/HR (KW/H) Max/Min (Propane)	26,000/20,000
Input BTU/HR (KW/H) Max/Min (Natural Gas)	26,000/17,000

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

	Cast Iron Surround (7x6) Finish: Cast Iron (Black) Size: 7x6 Detailed, classic cast iron appearance Cast Iron Surround does not accept a decorative front or bottom cover. Please Note: Cast Iron Surround Required SAK Adaptor
	Surround Adaptor Type: Surround Adaptor Kit Finish: Black Please Note: This is required for Cast Iron Surround
	Fuel Conversion Kits Natural Gas to Propane Propane to Natural Gas For use with Millivolt / Intermittent Pilot Control For Innsbrook Direct Vent Fireplace

Click to see Liners

	Traditional Brick Liner Type: Liner Traditional Brick Liner For use with DVC20IN31/71 Fireplace Insert
	Banded Brick Liner Type: Liner Banded Brick Liner For use with DVC20IN31/71 Fireplace Insert
	Washed Brick Liner Type: Liner Washed Brick Liner For use with DVC20IN31/71 Fireplace Insert
	Black Porcelain Liner Type: Liner Finish: Black Black Porcelain Liner For use with DVC20IN31/71 Fireplace Insert

Click to see Control Options

	FRBC Battery Operated On or Off Remote Control Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve) Does not require running wire to the fireplace Requires batteries for the receiver and for the handheld remote Operates during power outages
	FRBTC2 Battery Operated Thermostat Remote Control Type: Remote Control Millivolt Control Options Only Turns heater adjusts Thermostat Battery-operated remote control
	FREC Electric On-Off Remote Control with Battery Transmitter Millivolt Control Options Only Remote control with Battery transmitter for Empire remote-ready appliances Easy and convenient to use The receiver must be plugged in.
	FRBTPS Battery Operated Programmable Touch Screen Remote Control Type: Remote Control Millivolt Control Options Only Programmable and easy to use Battery-operated remote control
	FWS1 Wall Switch On/Off On-Off wall switch for Empire remote-ready appliances Mounts conveniently on wall
	TMV Wall Thermostat Reed Switch Wall thermostat with reed switch for Empire remote-ready appliances Mounts conveniently on wall
	TRW Wall Thermostat Wireless Remote Wall thermostat with wireless remote for Empire remote-ready appliances Thermostat mounts conveniently on wall
	Remote Kit for Natural Gas / Propane Model: RVKN - Natural Gas Model: RVKP - Propane Type: Remote Kit Variable Flame Height Kit Includes: Stepper Motor, Thermostat Remote, and Wiring.

Click to see Decorative Doors & Fronts

	Front - Lancaster Type: Front Style: Lancaster Finish: Black Bronze Please Note: Fronts required surround for installation.

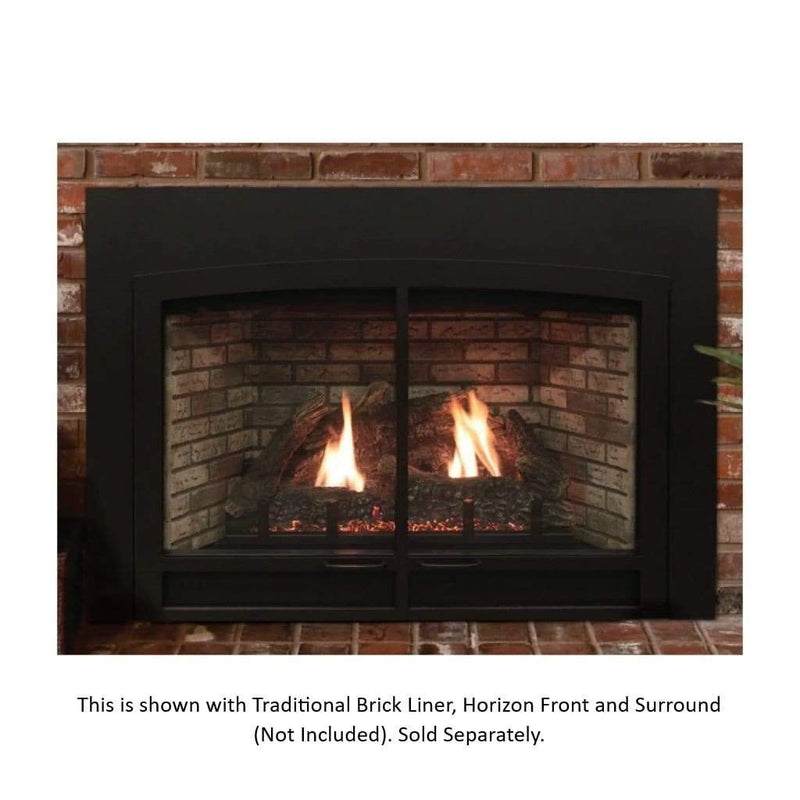

	Front - Horizon Type: Front Style: Horizon (non-operable doors) Finish: Black Please Note: Fronts required surround for installation.
	Doors - Transom Type: Doors Style: Transom (non-operable) Finish: Black Please Note: Fronts required surround for installation.

Click to see Surrounds / Bottom Covers (Surround Required)

	(3-Sided Metal Surround / 1-Piece) Size: 6x3x1 (37-in W x 26-in H) 6x6x1 (43-in W x 26-in H) 9x6x1 (43-in W x 29-in H) Finish: Black Bronze Please Note: Surround required to complete this unit.
	Bottom Cover for Surround Type: Bottom Cover Finish: Black / Bronze Use Bottom Cover when the steel surround does not reach floor.
	3-Sided Custom Surround Finish: Matte Black Custom Built Surround for Various Empire Fireplaces and Inserts
	4-Sided Custom Surround Finish: Matte Black Custom Built Surround for Various Empire Fireplaces and Inserts
	SH1BL Shroud Helps cover large gaps between your fireplace and surround when installing fireplace inserts Finish: Black Dimension: (48-in W x 35 3/4-in H, plus 2-in Bottom panel. Opening 36-in x 23 3/4-in)

WARRANTY

• 10-year limited warranty on combustion chamber, limited lifetime on glass.
• All other parts carry a three-year limited warranty.
• All remote controls carry a one-year limited warranty.
