OVERVIEW
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.
Advantages
- Good efficiency – 60 to 80%
- Good heat output with thermal transfer through the glass and air circulation
- Separates room air from combustion air
- May be used as primary heat source
- Can operate with a remote or thermostat
- Most systems can provide live-saving heat during a winter power outage

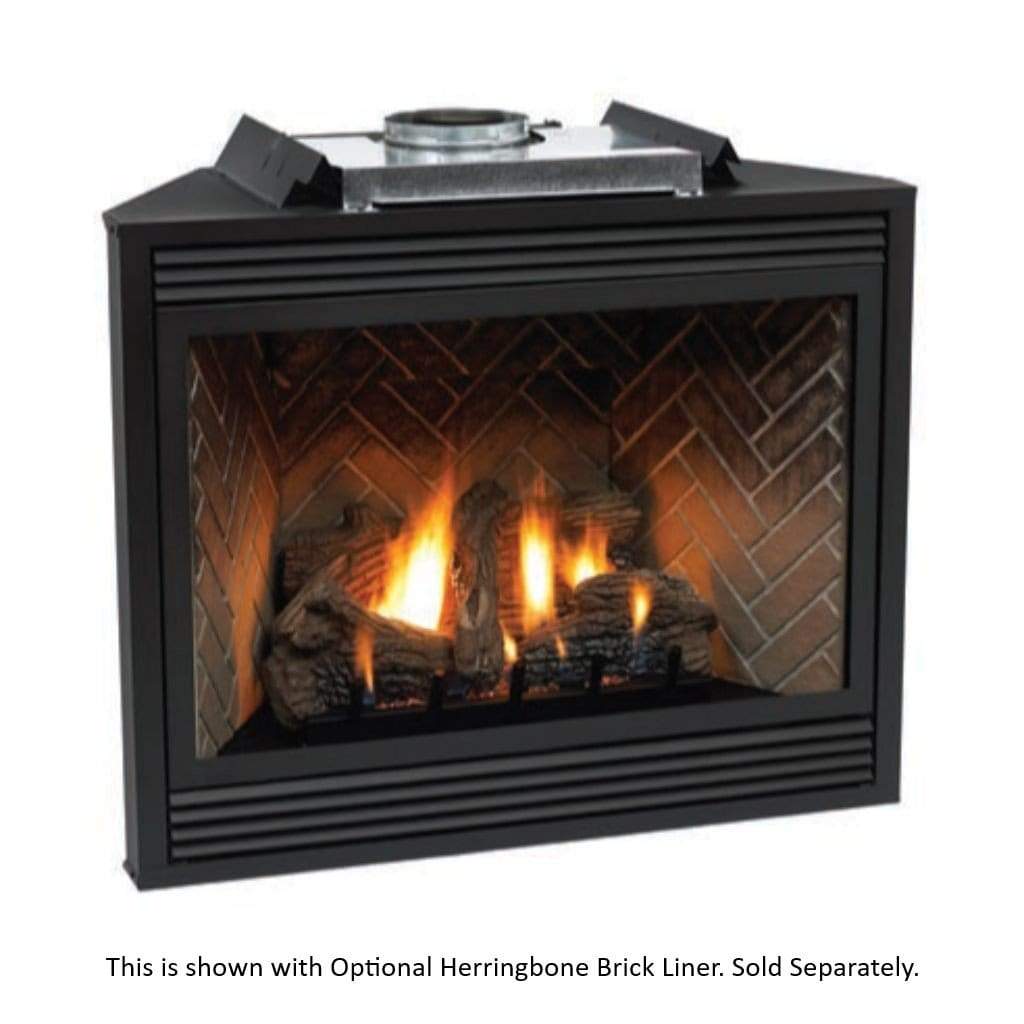

Tahoe Premium (DVP)
Tahoe Premium Fireplaces include a tempered glass view window and a four-piece log set, mounted atop our legendary Slope Glaze Burner for a rich flame pattern within a taller, deeper log stack that complements the deeper fireplace (20 inches).
Liner options for Premium Models include: Aged Brick, Herringbone, Stacked Limestone, and Black Reflective.
Tahoe Premium Fireplaces are available in Millivolt, and Intermittent Pilot and Multi-Function Remote Control models.
FEATURES
- Available in 36", 42" and 48" sizes
- Up to 27,000 BTUs
- Tempered Glass: 22 x 32 1/2
- Available in Millivolt, Intermittent Pilot and Multi-Function Control
- Liner options to choose from: Aged Brick, Herringbone, Stacked Limestone and Black Reflective
Specifications
| Model | DVP36 |
| Actual Dimensions | 37 5/8 H x 39 W x 19 7/8 D |
| Framing Dimensions | 37 3/4 H x 39 3/8 W x 19 7/8 D |
| Fuel Type | Natural Gas / Propane |
| Vent Type | Direct Vent |
| Vent Size | 4x6 5/8" |
| Ignition Type | Millivolt / Intermittent Pilot / Multi Function |
| Installation Type | Zero Clearance |
| Style | Traditional |
| Vent Inner Diameter | 4 Inches |
| Vent Outer Diameter | 6-5/8 Inches |
| Input BTU/HR (KW/H) Max/Min (Propane) | 27,000/21,000 |
| Input BTU/HR (KW/H) Max/Min (Natural Gas) | 25,000/18,000 |
CA Residents: See Prop 65 WARNING.
DOWNLOADS
- Product Brochure
- Installation Instructions and Owner's Manual
- Installation Instructions FBB4 Blower Kit
- Specification Sheet DVP36FP
OPTIONS & ACCESSORIES
 |
Rectangle Door Set
|
Click to see Barrier and Door Frame
 |
Black Barrier Only
|
 |
Door Frame with Black Barrier
|
Click to see Liner Kit
 |

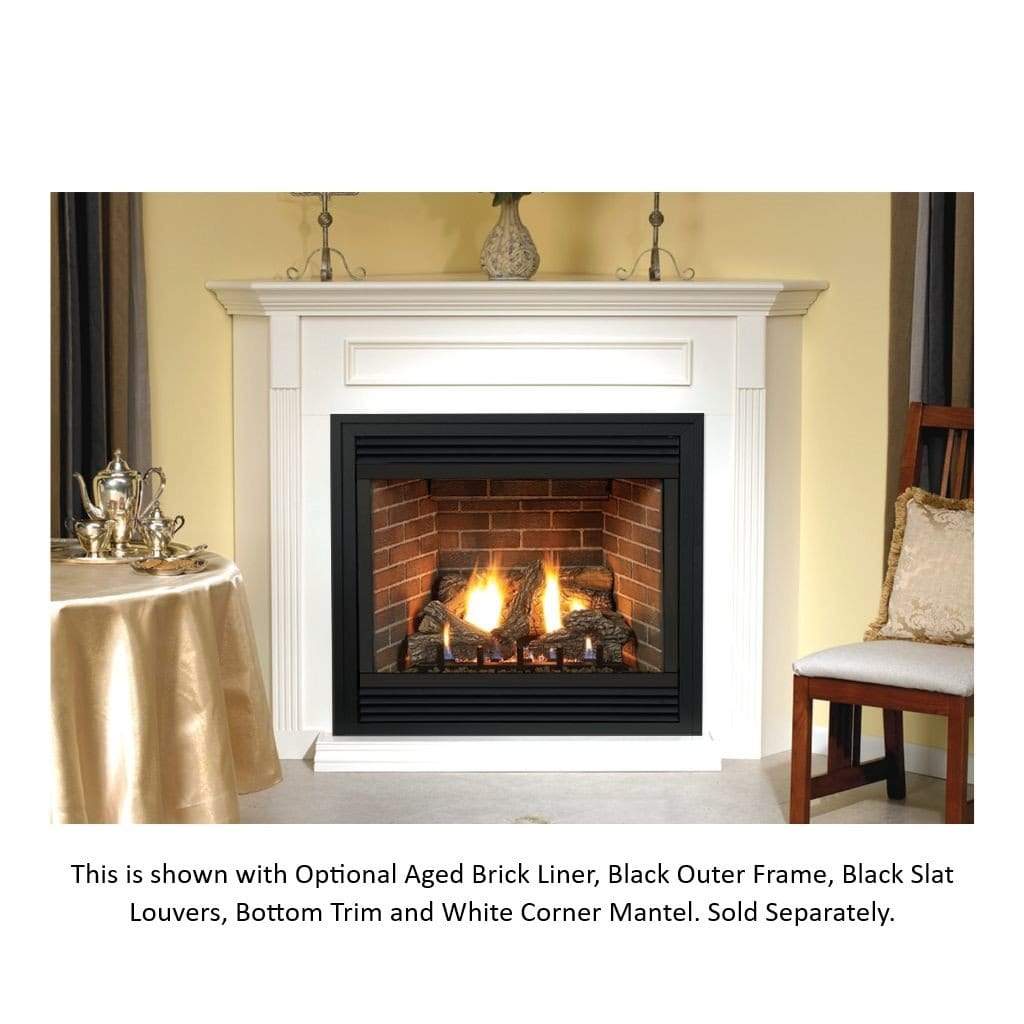

Herringbone Brick Liner
|
 |
Aged Brick Liner
|
 |
Stacked Limestone Liner
|
 |
Black Porcelain Liner
|
Click to see Cabinet Mantel
 |
Standard Cabinet Mantel
|
 |
Corner Cabinet Mantel
|
Click to see Louvers Options
 |
Decorative Mission Louvers
|
 |
Decorative Arch Louvers
|
Click to see Frame and Trim
 |
Steel Frame, Black
|
 |
Steel Frame, Hammered Pewter
|
 |
Trim Kit, Bottom
|
Click to see Control Options
 |
FRBC Battery Operated On or Off Remote Control
|
 |
FRBTC2 Battery Operated Thermostat Remote Control
|
|
|
FREC Electric On-Off Remote Control with Battery Transmitter
|
 |
FRBTPS Battery Operated Programmable Touch Screen Remote Control
|
 |
FWS1 Wall Switch On/Off
|
 |
TMV Wall Thermostat Reed Switch
|
 |
TRW Wall Thermostat Wireless Remote
|
 |
Variable Remote for Intermittent Pilot (Natural Gas / Propane)
|
 |
Auto Blower
|
|
Flexible 24" Stainless Steel Gas Line
|
 |
Platinum Embers
|
 |
Ember Kit
|
 |
Conversion Kits
|
WARRANTY
- 10-year limited warranty on combustion chamber; limited lifetime on glass
- All other parts carry a 3-year limited warranty
- All Remote Controls carry a 1-year limited warranty
| Shipping | This item ships to |
| Delivery | Estimated between TUE Apr 08 and SAT Apr 12. Will usually ship within 1 business day. |
