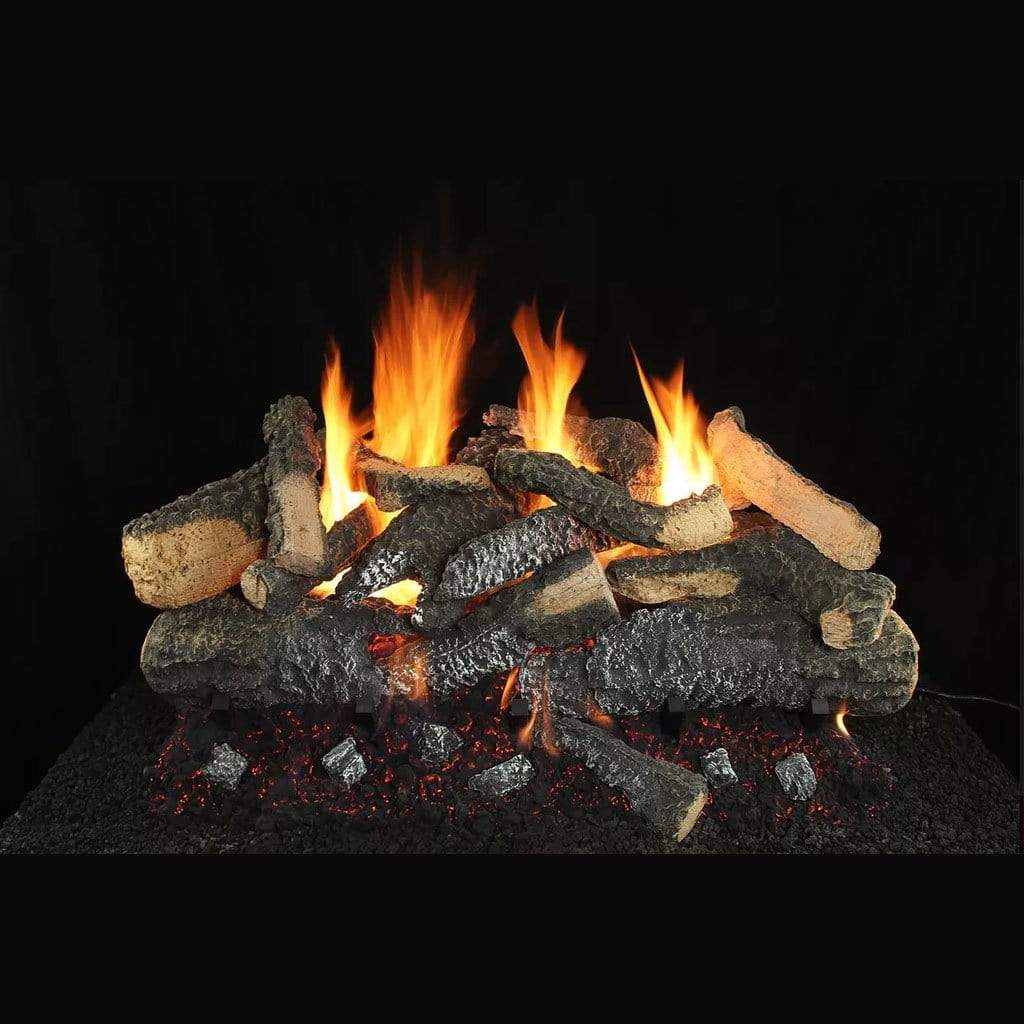

Hargrove 30" Kodiak Timbers Double Stack Single Side Large Vented Gas Log

SKU: KTS3020DS

Your Price:

$1,109.00

Great reasons to buy from us:

Free Shipping
FREE Shipping on Orders over $199
We will beat any price
110% Price Match Guarantee
Fast Shipping
In Stock Orders Ship in 24-48 hours
Huge Discounts
Up To 20% Off! Don't miss out on this limited time offer!

Overview

For more than 35 years we have been creating the most beautiful and realistic gas logs available. We offer a full line of vented and vent-free gas logs in standard and large sizes, for single open and see-through fireplaces. If you desire to enhance your fireplace with gas logs, we have everything you need to make it happen!

Description

Hargrove offers log sets and burner systems specifically designed for larger fireplaces.

Massive logs
Three burner systems (Double/Triple Stack, Ember Supreme, Summit Oak) that accommodate various log styles.
Refractory log materials capable of withstanding temperatures of 2000ºF.
Crisp log detail.

The Kodiak Timbers feature large fiber logs that glow with the fire.

Available in 30" and 36" sizes (min. of 21" fireplace depth required)
Single Side Sets available
Works with specially designed Double Stack burner
Available for Natural Gas or Liquid Propane

*Notes:

Burner System is not included with the log set and should be ordered separately.
Remote controls are not included with Millivolt Safety Pilot, and High Capacity Millivolt Safety Pilot and should be ordered separately.

Specification Sheet
Single Side Fireplaces
Set Size	Model #	Certified Models	Weight (lbs)	# of Logs in Set
30"	KTS3020DS	Non-Certified	30	20
36"	KTS3622DS	Non-Certified	35	22
All Single Side sets above use with the Double Stack Burner Kits

Vented Burner System Specification Sheet
Natural Gas
Burner System	Certification	Weight	BTU	Compatible Log Size
30" Double Stack	Non-Certified	62	200,000	30"

*Note:

Double Stack Burner kits require a minimum of 21" of depth.

Double Stack Burner kit Includes: Burner, grate, sand, or vermiculite, embers, volcanic cinder, fittings, and a black, non-whistling flex connector.

The size chart below indicates the minimum size fireplace opening in which different size gas log sets can be installed.

Minimum Fireplace Dimension
Gas Log Set Size	Depth	Front Width	Back Width
30"	21"	*36"*	*36"*
36"	21"	42"	42"

Limited Warranty

Refractory Logs	Hargrove gas logs carry a limited lifetime warranty against any manufactured defect or breakage when installed indoors. A replacement will be available from the dealer at which the appliance was purchased. This warranty does not cover breakage caused by excessive handling once installed and fired. Products installed in outdoor applications carry a one (1) year limited warranty.
Burner & Grate	If the burner or grate fails due to deterioration within five (5) years of the verified purchase date, a free replacement will be made available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty
All Other Parts	If any assembled part should fail to operate or be found defective within two (2) years of the verified purchase date, a replacement will be available from the dealer at which the appliance was purchased. Products installed in outdoor applications carry a one (1) year limited warranty.

Option and Accessories

Click to see Burner Systems

30" Double Stack Burner Kits

Available in 30” to 60” sizes
A combination of a large ember bed burner and an elevated main burner that provide flame depth and height needed for larger fireplaces
Recommended for Kodiak Split and Kodiak Char Series logs
Available with Match Light, Variable Flame, and High Capacity Millivolt Safety Pilot w/Wall Switch

Click to see Control Systems

Variable Safety Pilot with Variable Remote Control

Use Remote Control to turn the main burner on and off and adjust the flame height
Valve System is mounted using a flex connector allowing it to be located further from the main burn
Standing Pilot
Natural Gas

High Capacity Millivolt Safety Pilot with Wall Switch

Higher BTU Capacity Millivolt Pilot Kit for natural gas that utilizes the “EZ Mount” system. This kit is recommended for use on larger (36” sets and up) single side and See-Thru sets. Uses a 250-degree heat rated valve. Valve is mounted in a forward position for optimal performance

Click to see Millivolt Controls and Switching Accessories

	RC-S12V-MV Millivolt DC operated on/off remote control Kit includes 12 VDC remote/receiver - remote features: on/off function
	RC-I12V-BT Millivolt Remote & Bluetooth Kit includes 12VDC Remote/Receiver & Bluetooth smartphone capability
	BT-IBUG Millivolt Bluetooth Module Control Includes Bluetooth Module Control for smartphone capability
	RC-A110V-A Millivolt AC operated on/off remote control Requires 110 volt A/C electricity - remote features: on/off function, child-proof switch
	BCS Bark Chip Switch Bark chip switch, on/off function
	PCS Millivolt Pine Cone Switch 2 Piece Pine Cone switch, on/off function

Click to see Gas Log Accessories

	CK-6 Combo Kit This kit includes a 1x pinecone, 1x twig and 4x bark chips to add to your fireplace
	CCKGO Charred Chip Kit A kit of charred chips that can be used to add character to your log set 4x Decorative charred chips for ember bed
	BCKGO Bark Chip Kit 4x - Decorative Bark Chips for Ember Bed
	TK-2 Twig Kit 2x - Decorative Twigs - #602CL, #1110CL
	DPCK-2 Pine Cone Kit 2x - Decorative Pine Cones - #1201, #1203
	FCC-3 3x Decorative Charred Chips Kit 3x - Decorative Charred Chips for Ember Bed
	FCC-7 7x Decorative Charred Chips Kit 7x - Decorative Charred Chips for Ember Bed
	1203-BX Pine Cone These Pine Cones can be used to add some customization or to conceal a valve within your set.
	1204-BX Pine Cone These Pine Cones can be used to add some customization or to conceal a valve within your set.
	1205-BX Pine Cone These Pine Cones can be used to add some customization or to conceal a valve within your set.
	1210-BX Pine Cone These Pine Cones can be used to add some customization or to conceal a valve within your set.
	1215-BX Pine Cone These Pine Cones can be used to add some customization or to conceal a valve within your set.
	RW Glowing Ember PART B (Glowing Embers) ONLY
	PB-5 Platinum Bright Embers 5 Grams Bag Clean Burning, Luminous Embers for Vented Gas Logs For best use, mix with Standard Ember Material to accent the Ember Bed.
	SD Silica Sand - 10 lb. bag Sand for Natural Gas burner pan on vented log sets
	VC Volcanic Cinders - 5 lb. bag Volcanic Cinder used to cover the fireplace floor
	VM Vermiculite - 1 lb. bag Vermiculite for Liquid Propane burner pan on vented log sets
	VM-10 Vermiculite - 10 lb. bag Vermiculite for Liquid Propane burner pan on vented log sets
	RW-10 Glowing Ember 10 lb. Bag PART B (Glowing Embers) ONLY
	VCFP-S 3/8" Small Vocanic Cinders 5 gal. 5 gal small Vocanic Cinders
	VCFP-L 1" to 3" Large Vocanic Cinders 5 gal. 5 gal Large Vocanic Cinders
	SD-50 Silica Sand - 50 lb. bag Sand for Natural Gas burner pan on vented log sets

Downloads

Shipping	This item ships to
Delivery	Estimated between and . Will usually ship within 1 business day.
