OVERVIEW
The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home.
Kingsman fireplaces are among the safest and best designed on the market. This 42-inch gas-burning fireplace is made from top-of-the-line materials and comes complete with a dual burner, wall switch, 4/7" sloped top flute, tempered glass and louvered framing. It also comes standard with a completely sealed combustion unit and painted stove with the very best quality silicone paint.
Available in natural gas and liquid propane, Kingsman quality fireplaces let you enjoy the wonder of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home. Kingsman fireplaces have fully sealed combustion chambers with no pollution spillage to depreciate the indoor air quality of your home.
Kingsman Zero Clearance Direct Vent Fireplaces are available in 36" HBZDV3624, 36" HBZDV3628, 42" HBZDV4224, 42" HBZDV4228, 47" HBZDV4736 models.
Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long-lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.
STANDARD FEATURES
- Size: 42 inches
- Vent type: direct vent
- Safety Screen Barrier
- Gas Inlet Size 3/8"(SIT)
- Fully sealed combustion chamber
- Efficiency Rating: 44.7% NG / 47.9% LP
- Includes removable safety barrier screen
- Dual burner with Realistic Flame Pattern
- Tempered glass front radiates heat to the room
- Viewing Area Dimensions: 33 3/8" Wide, 20 3/8" High
- Able to be configured as a clean face or louvered model
- SIT brand gas control valve with manual high/low controls
- Reliable standing pilot valve system ensures ready operation during power outages
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
PRODUCT SPECIFICATION
| Model | HBZDV4224N/NE |
HBZDV4224LP/LPE |
| Fuel | Natural | Propane |
| Flue | Top |
Top |
| Gas Control | Millivolt / IPI | Millivolt / IPI |
| Input Max. | 24,000 BTU |
22,000 BTU |
| Input Min. | 14,000 BTU |
15,000 BTU |
| FE (p.4.1-02)% | 55.69% / 57.81% |
57.03% / 59.09% |
|
Flue Sizes |
4/7" |
4/7" |
|
Glass Size |
35 1/2"W x 22 21/32" H |
35 1/2"W x 22 21/32" H |
| Glass Type | Tempered | Tempered |
| Size (WxHxD) |
42"W x 37"H x 16 7/16"D |
42"W x 37"H x 16 7/16"D |
| Viewing Area |
33 3/8" W x 20 3/8" H |
33 3/8" W x 20 3/8" H |
| Venting | 4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
| Electronic Ignition |
Yes | Yes |
| Certification | Decorative | Decorative |
| Bedroom Approved |
Yes | Yes |
DIMENSIONS
CA Residents: See Prop 65 WARNING
OPTIONAL ACCESSORIES
Click to see Log Set (Required to Complete)
Log Set
 |
Four Piece Classic Oak Log Set (LOGC42)
|
 |
Four Piece Traditional Oak Log Set (LOGC43)
|
 |
Eight Piece Burnt Oak Log Set (LOGC44)
|
Click to see Conversion Kit
Conversion Kit
 |
Conversion Kit to Propane Millivolt (4224HB-CKLP)
Conversion Kit to Natural Gas Millivolt (4224HB-CKNG)
Conversion Kit to Propane IPI (4224HB-CKLPI)
Conversion Kit to Natural Gas IPI (4224HB-CKNGI)
|
Click to see Grill Kit or Designer Clean View Kit (Required to Complete)
Grill Kit or Designer Clean View Kit
 |
Designer Clean View Circulating Kit (HB42CVCK)
|
 |
Grill Kit (HB42GBL)
|
Click to see Liner Kit
Liner Kit
 |
Traditional Refractory Fiber Brick Liner (HB42RLT)
|
 |
Herringbone Refractory Fiber Brick Liner (HB42RLH)
|
 |
Porcelain Reflective Panel Liner (HB42PL)
|
Click to see Fan Kit
Fan Kit
 |
Speed Temperature Sensing Fan Kit (Z36FK)
|
Click to see Black Surround (For Louvered Units only)
Black Surround
 |
Black Surround (HB42SBL)
|
Click to see Log Bits Kit
Log Bits Kit
|
Four Piece Log Bits Kit (VLBIT4)
|
|
Six Piece Log Bits Kit (VLBIT6)
|
Click to see Thermostat
Thermostat
 |
Wall Mount Thermostat- For Millivolt Units (Z2MT)
Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)
|
Click to see Remote Control
Remote Control
 |
On/Off Remote Control for Millivolt/IPI Units (GFRC)
|
 |
Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)
|
|
|
Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
|
|
Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units (GTFRCN, GTFRCP, EGTFRCN, EGTFRCP)
|
Click to see venting products
venting
| DuraVent Sloped Flue Stove Pipe Adapter - ZDVDFA | |
 |
The Dura-vent fireplace adapter is just the thing you would like to keep the fireplace residue from infiltrating your house. With this vent, fresher air is produced throughout the house. |
| Horizontal Chimney Vent Termination Starter Kit | |
|
|
Round and Square Horizontal Chimney Vent Termination Starter Kit will provide you with the secure and efficient ventilation you need to stay your fireplace functioning well. This vent termination starter kit is 36/60 inches long, and it comes with a wall thimble, all the screws, and a mill pac. |
|
Flex Chimney Vent Kit - 4" Inner Diameter |
|
 |
Flex ventilation material adapts to tight spaces and corners and allows you more freedom with the placement of your stove. 5 / 8 / 20 Foot Length. Spring, Screws, Mill Pac Included. Primarily used as an extension for venting systems. |
| 4/7 Horizontal Vent Termination - FDVHT, FDVHSQ | |
|
|
Round/Square Vent Horizontal Termination for 4x7-Inch Venting provides a premium installation component for use with your fireplace. |
| Universal Safety Cage for Horizontal Termination - FDVHSCU | |
 |
Universal Safety Cage. Designed for Horizontal Termination. Use with Horizontal Vent Starter Kit. |
| Horizontal Stucco Shield - FDVHSS | |
 |
It's designed to protect the stucco siding from heat. Its product adding a direct vent stove to your home, consider the protection necessary for using it safely. |
|
Chimney Vent Snorkel Termination - Z47ST24, Z47ST36 |
|
 |
Chimney Vent Snorkel Termination for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. With a variety of styles and high-quality materials. If a vertical rise is necessary on the exterior side of the building. |
| Convertible Between 15' & 40' Vertical Vent Termination - FDVVT40 | |
 |
It's convertible between 15' and 40' vertical. The convertible function allows for better flexibility and use. Must watch out to follow the proper steps and double-check that the proper parts and accessories are being used. |
|
Vertical Chimney Vent Termination - Z47VT |
|
|
Direction: Vertical Type: Vent Termination Fireplace type: Zero Clearance direct vent gas |
| Attic Insulation Shield - ZDVAIS | |
 |
This shield will protect your attic and roof from the heat that escapes through the chimney. The shield offers 12" and 24" of insulation designed to surround your chimney. |
| Vertical Chimney Vent Offset Support - ZDVVOS | |
 |
It'll support your chimney through inclement weather, including heavy rain, snow accumulation, and wind, also as natural wear from gravity over time. The support has been tested for durability and function. |
| Vertical Chimney Vent Firestop Spacer - ZDVFS | |
 |
Chimney Vent Firestop Spacer is created out of rugged metal that will not deteriorate within the short term, and it'll make sure that your chimney vent is held at a correct length from any flammable surface nearby, such as the wall. |
| Chimney Vent Roof Support - ZDVRS | |
 |
Chimney Vent Roof Support will help your chimney function well through various circumstances: heavy wind, storms with heavy rain, hail, and snow accumulation just to call some. |
| Wall Thimble for Horizontal Venting - ZDVWT | |
 |
Horizontal Chimney Vent Wall Thimble for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. This Vent Wall Thimble is durably constructed and tested rigorously to protect your wall and inner material from the hot surface of the ventilation piping. |
| Heat Deflector Siding Shield - ZDVSS | |
 |
Siding Heat-Shield for Horizontal Round Chimney Termination will protect your siding from the chance of combustion to the heat. Protect combustible siding from combustion and charring. Made with careful metallic composition for heat tolerance. |
| Large Return Siding Shield - ZDVSSLR | |
 |
Siding Heat-Shield for Horizontal Round/Square Chimney Termination will protect your siding from the chance of combustion to the heat. |
| Roof Flashing with Storm Collar - ZDVAAF, ZDVAF2, ZDVAF3 | |
|
|
This storm collar measures 7" in inner diameter. This product has the capability of sealing the vent lengths that protrude from a sloped roof. And also, vertical installations are needed with this product and can be purchased separately. |
| 7" Storm Collar - ZDV7SC | |
 |
7-Inch Vertical Venting Storm Collar for 4x7-Inch Vertical Venting provides a premium installation component to be used together with your fireplace. This storm collar measures 7 inches in diameter. |
| 3-Feet Insulation Sleeve for Low Enclosures - MDV38IS | |
|
If you have a multi-sided direct vent fireplace, you'll need an MDV38IS Insulation Sleeve. This insulation sleeve measures 3 feet and is for low enclosures. |
| Flex Connector - 4" & 7" Diameter - ZDV4FC, ZDV7FC | |
 |
The chimney vent is just the thing to stay your belongings free of dirt. This chimney vent is provided with a flex connector that measures 4 or 7 inches in diameter. |
| Flex Clamp - 4" & 7" Diameter - ZDV4FCL, ZDV7FCL | |
 |
Flex Clamp provides a premium installation component to be used with your fireplace. This clamp is 4 or 7 inches in diameter. |
| 4" Standoff Spring Spacer - ZDV4SS | |
 |
Spring standoff spacer is simply the part needed for your chimney vent. This spring spacer measures 4 inches in diameter and has the potential of withstanding years of use. This spacer also will keep its polishing color. |
| Safety Cage for Snorkel Termination - Z57STSC | |
 |
Safety Cage for Snorkel Termination for 4"/7" Venting Systems is a wonderful choice. Prevents contact with hot snorkel terminations. |
| Galvanized Chimney Vent Pipe for Vertical Installations - Z47GP36 | |
 |
This particular model is used for vertical installations. The galvanization of this model makes it not only easy to keep clean, but also sturdy enough to withstand years of use. |
| Dura-Vent Stove Adapter - ZDVDKA | |
 |
Dura-vent stove adapter is used specifically with direct vent stoves and allows the ventilation to exceed expectations when comparing them to other vents. |
| Dura-Vent Hard Pipe Adapter - ZDVDIA | |
 |
Pipe adapter for connecting 4 x 6 5/8" Duravent to 5"/8" Kingsman pipe. Can be used to convert Kingsman appliances |
|
Flex Pipe Adapter Kit for Power Vent Applications - Z47PVA |
|
 |
Designed to adapt hard pipe to flex in power vent applications. Compatible with 4"/7" venting and power vents. Requires a one-foot section of 5"/8" venting to complete transition |
| Wall Thimble for Power Vent - PVH58WT | |
 |
Compatible with 5"/8" venting and power vents. Product Type Options: Transition. Components, Adaptors, Termination Components. Designed to facilitate safe passage of vent pipes through combustible walls. |
| Horizontal Power Vent Starter Kit - PVH58 | |
 |
Complete with termination and wall thimble, it completes the installation of your fireplace so that you'll enjoy the time. Includes power vent termination, wall thimble, 20 ft. harness, and mill pack |
| Power Vent Control Module for Millivolt Models - PVC58MV | |
 |
Designed specifically for these linear gas fireplaces, this power vent control module helps the fireplace operate smoothly. When all parts are installed correctly. |
| Power Vent Control Module for IPI Models - PVC58IPI | |
|
Required for proper power vent operation. Ensures safe operation of power vent-equipped appliances. Synchronizes the PVH58 power vent kit with Kingsman IPI fireplaces. |
|
20 Foot Harness Extension - PVH20H |
|
 |
Main wiring harness assembly, Measures 20 feet. Part of the Zero-Clearance direct vent linear gas fireplace with Millivolt control collection. For use with PVH58 Power Vent Starter Kit |
DOWNLOADS
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
OVERVIEW
The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home.
Kingsman fireplaces are among the safest and best designed on the market. This 42-inch gas-burning fireplace is made from top-of-the-line materials and comes complete with a dual burner, wall switch, 4/7" sloped top flute, tempered glass and louvered framing. It also comes standard with a completely sealed combustion unit and painted stove with the very best quality silicone paint.
Available in natural gas and liquid propane, Kingsman quality fireplaces let you enjoy the wonder of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home. Kingsman fireplaces have fully sealed combustion chambers with no pollution spillage to depreciate the indoor air quality of your home.
Kingsman Zero Clearance Direct Vent Fireplaces are available in 36" HBZDV3624, 36" HBZDV3628, 42" HBZDV4224, 42" HBZDV4228, 47" HBZDV4736 models.
Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long-lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.
STANDARD FEATURES
- Size: 42 inches
- Vent type: direct vent
- Safety Screen Barrier
- Gas Inlet Size 3/8"(SIT)
- Fully sealed combustion chamber
- Efficiency Rating: 44.7% NG / 47.9% LP
- Includes removable safety barrier screen
- Dual burner with Realistic Flame Pattern
- Tempered glass front radiates heat to the room
- Viewing Area Dimensions: 33 3/8" Wide, 20 3/8" High
- Able to be configured as a clean face or louvered model
- SIT brand gas control valve with manual high/low controls
- Reliable standing pilot valve system ensures ready operation during power outages
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
PRODUCT SPECIFICATION
| Model | HBZDV4224N/NE |
HBZDV4224LP/LPE |
| Fuel | Natural | Propane |
| Flue | Top |
Top |
| Gas Control | Millivolt / IPI | Millivolt / IPI |
| Input Max. | 24,000 BTU |
22,000 BTU |
| Input Min. | 14,000 BTU |
15,000 BTU |
| FE (p.4.1-02)% | 55.69% / 57.81% |
57.03% / 59.09% |
|
Flue Sizes |
4/7" |
4/7" |
|
Glass Size |
35 1/2"W x 22 21/32" H |
35 1/2"W x 22 21/32" H |
| Glass Type | Tempered | Tempered |
| Size (WxHxD) |
42"W x 37"H x 16 7/16"D |
42"W x 37"H x 16 7/16"D |
| Viewing Area |
33 3/8" W x 20 3/8" H |
33 3/8" W x 20 3/8" H |
| Venting | 4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
| Electronic Ignition |
Yes | Yes |
| Certification | Decorative | Decorative |
| Bedroom Approved |
Yes | Yes |
DIMENSIONS
CA Residents: See Prop 65 WARNING
OPTIONAL ACCESSORIES
Click to see Log Set (Required to Complete)
Log Set
|
Four Piece Classic Oak Log Set (LOGC42)
|
|
Four Piece Traditional Oak Log Set (LOGC43)
|
|
Eight Piece Burnt Oak Log Set (LOGC44)
|
Click to see Conversion Kit
Conversion Kit
|
|
Conversion Kit to Propane Millivolt (4224HB-CKLP)
Conversion Kit to Natural Gas Millivolt (4224HB-CKNG)
Conversion Kit to Propane IPI (4224HB-CKLPI)
Conversion Kit to Natural Gas IPI (4224HB-CKNGI)
|
Click to see Grill Kit or Designer Clean View Kit (Required to Complete)
Grill Kit or Designer Clean View Kit
|

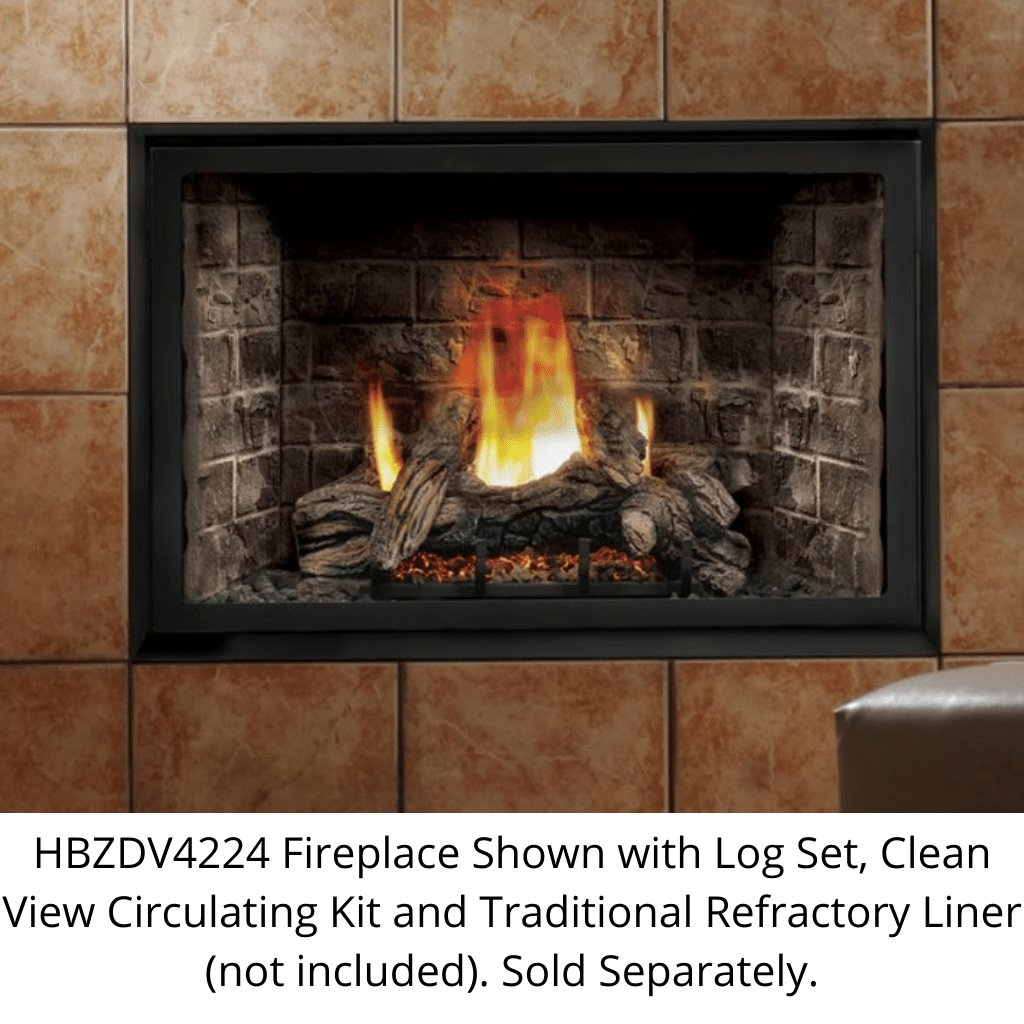

Designer Clean View Circulating Kit (HB42CVCK)
|
|

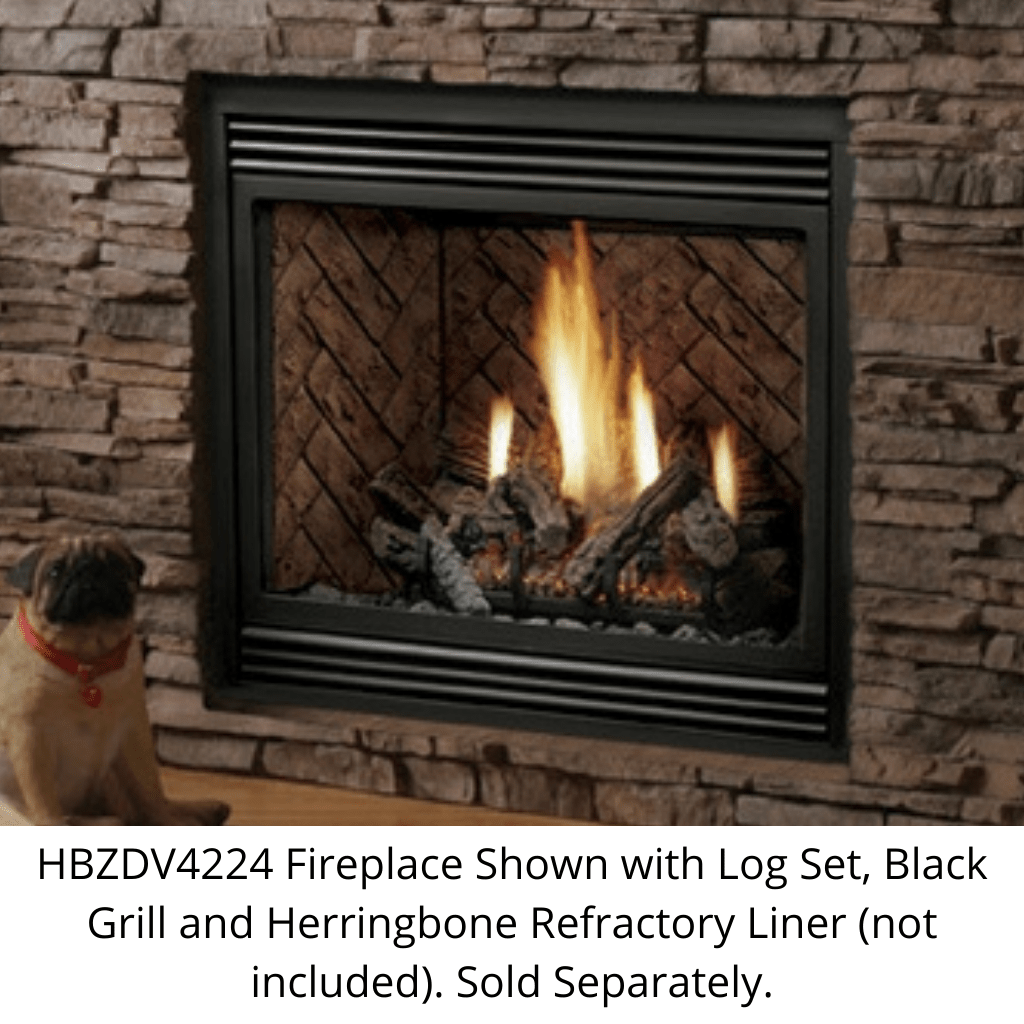

Grill Kit (HB42GBL)
|
Click to see Liner Kit
Liner Kit
|
Traditional Refractory Fiber Brick Liner (HB42RLT)
|
|
Herringbone Refractory Fiber Brick Liner (HB42RLH)
|
|
Porcelain Reflective Panel Liner (HB42PL)
|
Click to see Fan Kit
Fan Kit
|
Speed Temperature Sensing Fan Kit (Z36FK)
|
Click to see Black Surround (For Louvered Units only)
Black Surround
|
Black Surround (HB42SBL)
|
Click to see Log Bits Kit
Log Bits Kit
|
Four Piece Log Bits Kit (VLBIT4)
|
|
Six Piece Log Bits Kit (VLBIT6)
|
Click to see Thermostat
Thermostat
|
Wall Mount Thermostat- For Millivolt Units (Z2MT)
Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)
|
Click to see Remote Control
Remote Control
|
|
On/Off Remote Control for Millivolt/IPI Units (GFRC)
|
|
Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC)
|
|
|
Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units
|
|
Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units (GTFRCN, GTFRCP, EGTFRCN, EGTFRCP)
|
Click to see venting products
venting
| DuraVent Sloped Flue Stove Pipe Adapter - ZDVDFA | |
|
|
The Dura-vent fireplace adapter is just the thing you would like to keep the fireplace residue from infiltrating your house. With this vent, fresher air is produced throughout the house. |
| Horizontal Chimney Vent Termination Starter Kit | |
|
|
Round and Square Horizontal Chimney Vent Termination Starter Kit will provide you with the secure and efficient ventilation you need to stay your fireplace functioning well. This vent termination starter kit is 36/60 inches long, and it comes with a wall thimble, all the screws, and a mill pac. |
|
Flex Chimney Vent Kit - 4" Inner Diameter |
|
|
Flex ventilation material adapts to tight spaces and corners and allows you more freedom with the placement of your stove. 5 / 8 / 20 Foot Length. Spring, Screws, Mill Pac Included. Primarily used as an extension for venting systems. |
| 4/7 Horizontal Vent Termination - FDVHT, FDVHSQ | |
|
|
Round/Square Vent Horizontal Termination for 4x7-Inch Venting provides a premium installation component for use with your fireplace. |
| Universal Safety Cage for Horizontal Termination - FDVHSCU | |
|
Universal Safety Cage. Designed for Horizontal Termination. Use with Horizontal Vent Starter Kit. |
| Horizontal Stucco Shield - FDVHSS | |
|
It's designed to protect the stucco siding from heat. Its product adding a direct vent stove to your home, consider the protection necessary for using it safely. |
|
Chimney Vent Snorkel Termination - Z47ST24, Z47ST36 |
|
|
Chimney Vent Snorkel Termination for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. With a variety of styles and high-quality materials. If a vertical rise is necessary on the exterior side of the building. |
| Convertible Between 15' & 40' Vertical Vent Termination - FDVVT40 | |
|
It's convertible between 15' and 40' vertical. The convertible function allows for better flexibility and use. Must watch out to follow the proper steps and double-check that the proper parts and accessories are being used. |
|
Vertical Chimney Vent Termination - Z47VT |
|
|
Direction: Vertical Type: Vent Termination Fireplace type: Zero Clearance direct vent gas |
| Attic Insulation Shield - ZDVAIS | |
|
This shield will protect your attic and roof from the heat that escapes through the chimney. The shield offers 12" and 24" of insulation designed to surround your chimney. |
| Vertical Chimney Vent Offset Support - ZDVVOS | |
|
It'll support your chimney through inclement weather, including heavy rain, snow accumulation, and wind, also as natural wear from gravity over time. The support has been tested for durability and function. |
| Vertical Chimney Vent Firestop Spacer - ZDVFS | |
|
Chimney Vent Firestop Spacer is created out of rugged metal that will not deteriorate within the short term, and it'll make sure that your chimney vent is held at a correct length from any flammable surface nearby, such as the wall. |
| Chimney Vent Roof Support - ZDVRS | |
|
Chimney Vent Roof Support will help your chimney function well through various circumstances: heavy wind, storms with heavy rain, hail, and snow accumulation just to call some. |
| Wall Thimble for Horizontal Venting - ZDVWT | |
|
Horizontal Chimney Vent Wall Thimble for 4x7-Inch Venting provides a premium installation component to be used with your fireplace. This Vent Wall Thimble is durably constructed and tested rigorously to protect your wall and inner material from the hot surface of the ventilation piping. |
| Heat Deflector Siding Shield - ZDVSS | |
|
Siding Heat-Shield for Horizontal Round Chimney Termination will protect your siding from the chance of combustion to the heat. Protect combustible siding from combustion and charring. Made with careful metallic composition for heat tolerance. |
| Large Return Siding Shield - ZDVSSLR | |
|
Siding Heat-Shield for Horizontal Round/Square Chimney Termination will protect your siding from the chance of combustion to the heat. |
| Roof Flashing with Storm Collar - ZDVAAF, ZDVAF2, ZDVAF3 | |
|
|
This storm collar measures 7" in inner diameter. This product has the capability of sealing the vent lengths that protrude from a sloped roof. And also, vertical installations are needed with this product and can be purchased separately. |
| 7" Storm Collar - ZDV7SC | |
|
7-Inch Vertical Venting Storm Collar for 4x7-Inch Vertical Venting provides a premium installation component to be used together with your fireplace. This storm collar measures 7 inches in diameter. |
| 3-Feet Insulation Sleeve for Low Enclosures - MDV38IS | |
|
If you have a multi-sided direct vent fireplace, you'll need an MDV38IS Insulation Sleeve. This insulation sleeve measures 3 feet and is for low enclosures. |
| Flex Connector - 4" & 7" Diameter - ZDV4FC, ZDV7FC | |
|
The chimney vent is just the thing to stay your belongings free of dirt. This chimney vent is provided with a flex connector that measures 4 or 7 inches in diameter. |
| Flex Clamp - 4" & 7" Diameter - ZDV4FCL, ZDV7FCL | |
|
Flex Clamp provides a premium installation component to be used with your fireplace. This clamp is 4 or 7 inches in diameter. |
| 4" Standoff Spring Spacer - ZDV4SS | |
|
Spring standoff spacer is simply the part needed for your chimney vent. This spring spacer measures 4 inches in diameter and has the potential of withstanding years of use. This spacer also will keep its polishing color. |
| Safety Cage for Snorkel Termination - Z57STSC | |
|
Safety Cage for Snorkel Termination for 4"/7" Venting Systems is a wonderful choice. Prevents contact with hot snorkel terminations. |
| Galvanized Chimney Vent Pipe for Vertical Installations - Z47GP36 | |
|
This particular model is used for vertical installations. The galvanization of this model makes it not only easy to keep clean, but also sturdy enough to withstand years of use. |
| Dura-Vent Stove Adapter - ZDVDKA | |
|
Dura-vent stove adapter is used specifically with direct vent stoves and allows the ventilation to exceed expectations when comparing them to other vents. |
| Dura-Vent Hard Pipe Adapter - ZDVDIA | |
|
Pipe adapter for connecting 4 x 6 5/8" Duravent to 5"/8" Kingsman pipe. Can be used to convert Kingsman appliances |
|
Flex Pipe Adapter Kit for Power Vent Applications - Z47PVA |
|
|
Designed to adapt hard pipe to flex in power vent applications. Compatible with 4"/7" venting and power vents. Requires a one-foot section of 5"/8" venting to complete transition |
| Wall Thimble for Power Vent - PVH58WT | |
|
Compatible with 5"/8" venting and power vents. Product Type Options: Transition. Components, Adaptors, Termination Components. Designed to facilitate safe passage of vent pipes through combustible walls. |
| Horizontal Power Vent Starter Kit - PVH58 | |
|
Complete with termination and wall thimble, it completes the installation of your fireplace so that you'll enjoy the time. Includes power vent termination, wall thimble, 20 ft. harness, and mill pack |
| Power Vent Control Module for Millivolt Models - PVC58MV | |
|
Designed specifically for these linear gas fireplaces, this power vent control module helps the fireplace operate smoothly. When all parts are installed correctly. |
| Power Vent Control Module for IPI Models - PVC58IPI | |
|
Required for proper power vent operation. Ensures safe operation of power vent-equipped appliances. Synchronizes the PVH58 power vent kit with Kingsman IPI fireplaces. |
|
20 Foot Harness Extension - PVH20H |
|
|
Main wiring harness assembly, Measures 20 feet. Part of the Zero-Clearance direct vent linear gas fireplace with Millivolt control collection. For use with PVH58 Power Vent Starter Kit |
DOWNLOADS
Shipping
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Item Added to Your Cart
Add One of These Popular Items
3
visitors right now
3
visitors have this item in their cart right now
3
people have bought this item
3
% of people buy 2 or more
