Empire 48" Tahoe Deluxe Direct Vent Gas Fireplace

Name: Empire 48" Tahoe Deluxe Direct Vent Gas Fireplace
Brand: Empire Comfort Systems
SKU: DVD48FP30P

SKU: DVD48FP30P

Your Price:

$2,169.00

Ignition Type

Fuel Type

Great reasons to buy from us:

Free Shipping
FREE Shipping on Orders over $199
We will beat any price
110% Price Match Guarantee
Fast Shipping
In Stock Orders Ship in 24-48 hours
Huge Discounts
Up To 20% Off! Don't miss out on this limited time offer!

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the  case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,  but can also be installed elsewhere in the home and vented through the roof.

Advantages

Good efficiency – 60 to 80%
Good heat output with thermal transfer through the glass and air circulation
Separates room air from combustion air
May be used as primary heat source
Can operate with a remote or thermostat
Most systems can provide live-saving heat during a winter power outage

Tahoe Deluxe (DVD)

Tahoe Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

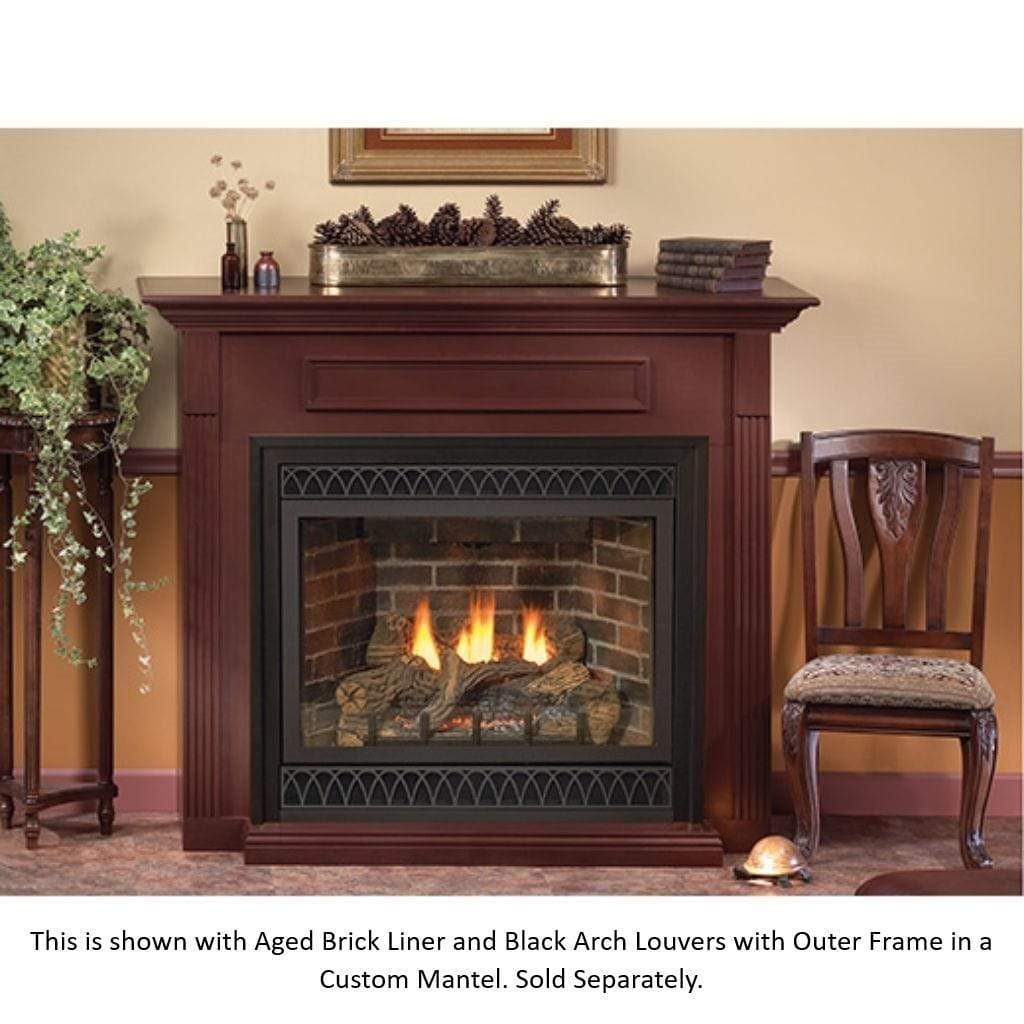

The Deluxe Tahoe model has louvers and an available trim kit. The large heat-resistant, tempered glass window provides an unobstructed view to the log set. Tahoe Deluxe offer several styles of liners – Aged Brick, Herringbone, Stacked Limestone, and Black Reflective.

Tahoe Deluxe models require just 16 inches of depth making them ideal for applications where wall-cavity space is tight.

Available In Two Types of Ignition

i) Millivolt (MV)

Empire Cast Iron Stoves are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch concealed on the back of the stove or with one of Empire’s optional remote control systems.

ii) Intermittent Pilot (IP)

IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.

Includes AC Power Adaptor (120VAC) with battery backup (switches to battery during power outage)

FEATURES

Available in 32", 36", 42" and 48" sizes.
Tempered Glass: 22 x 42 1/2
Up to 28,000 BTUs
The large heat-resistant, tempered glass window provides an unobstructed view to the log set
Offer several styles of liners - Aged Brick, Herringbone, Stacked Limestone, and Black Porcelain
Ideal for applications where wall-cavity space is tight

Includes: Log Set

Requires: Fireplace Barrier or Door Set and Frame with Barrier

Specifications

Model	DVD48

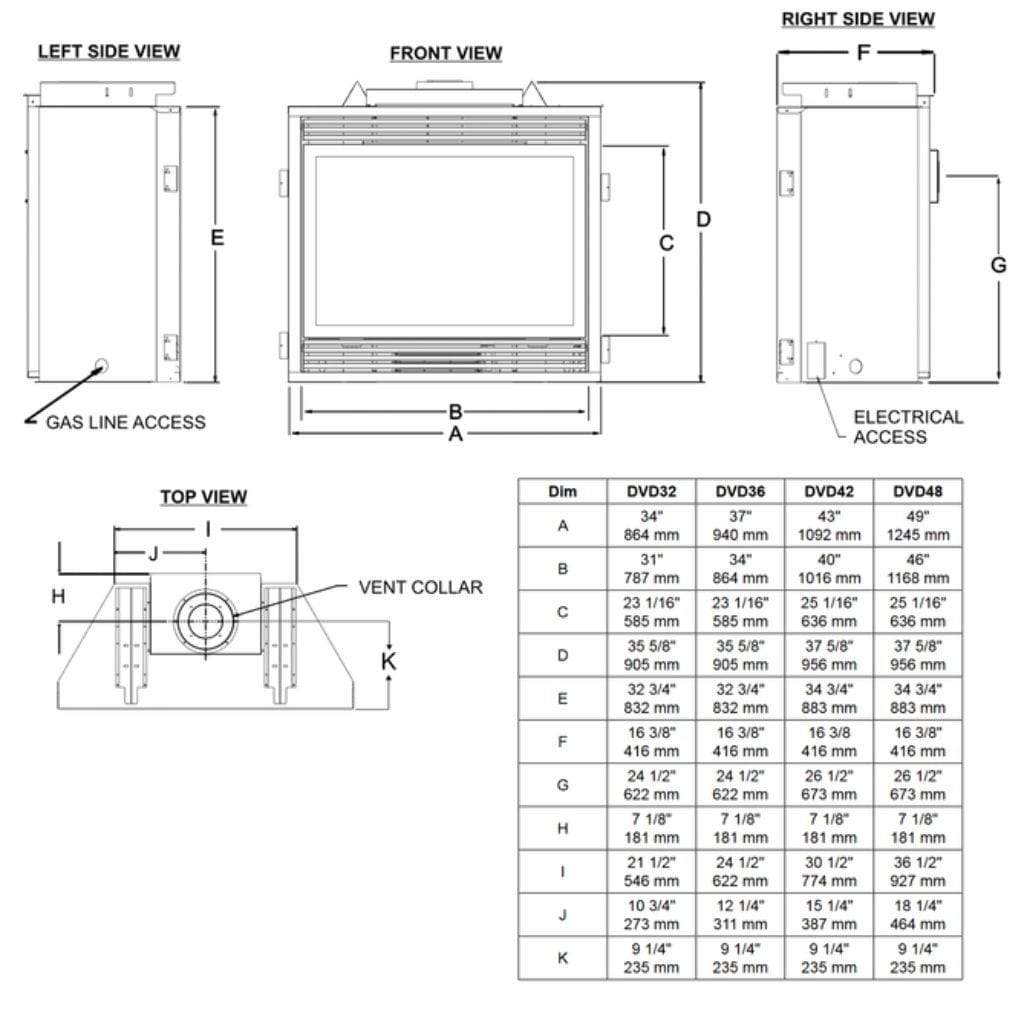

Actual Dimensions	37 5/8 H x 49 W x 16 3/8 D

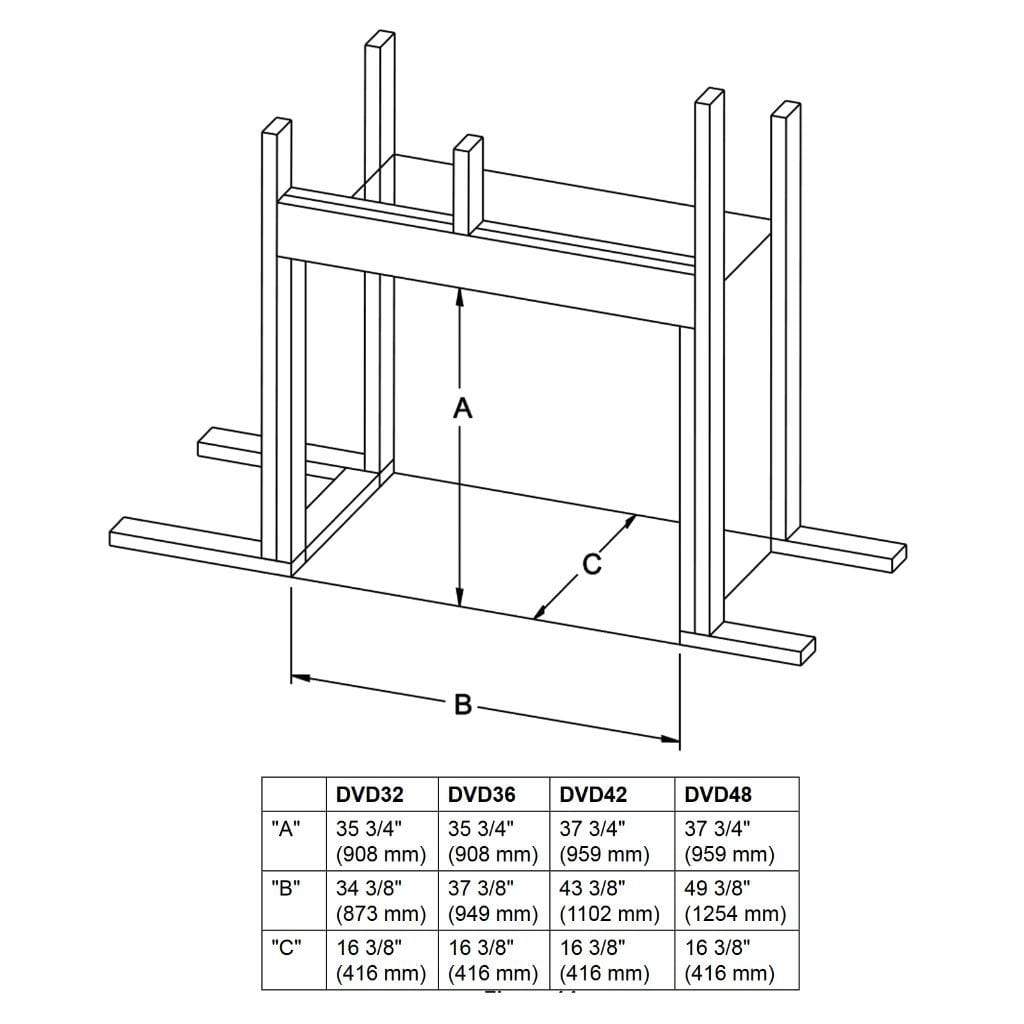

Framing Dimensions	37 3/4 H x 49 3/8 W x 16 3/8 D
Fuel Type	Natual Gas / Propane
Vent Type	Direct Vent
Vent Size	4x6 5/8"
Ignition Type	Millivolt / Intermittent Pilot
Installation Type	Zero Clearance
Style	Traditional
Vent Inner Diameter	4 Inches
Vent Outer Diameter	6-5/8 Inches
Input BTU/HR (KW/H) Max/Min (Propane)	28,000/22,000
Input BTU/HR (KW/H) Max/Min (Natural Gas)	28,000/20,000

CA Residents: See Prop 65 WARNING.

DOWNLOADS

OPTIONS & ACCESSORIES

Click to see Liners

	Herringbone Brick Liner Ceramic fiber liner Finish: Herringbone Brick Gives your firebox the look of a real masonry fireplace.
	Aged Brick Liner Ceramic fiber liner Realistic brown bricks with charcoal mortar Finish: Aged Brick Gives your firebox the look of a real masonry fireplace.
	Stacked Limestone Liner Ceramic fiber liner Finish: Stacked Limestone Gives your firebox the look of a real masonry fireplace.
	Black Porcelain Liner Finish: Black Porcelain Gives your firebox a contemporary modern look Reflective black metal design enhances and amplifies the appearance of flames

Click to see Door Set

	Rectangle Door Set Type: Door set Finish: Black Shape: Rectangle Include handles Note: Door Set Required Door Frame with Barrier
	Mission Rectangle Door Set Type: Door set Finish: Black Shape: Rectangle Include handles Note: Door Set Required Door Frame with Barrier
	Arch Door Set Type: Door Set Finish: Black Include handles Note: Door Set Required Door Frame with Barrier
	Mission Arch Door Set Type: Door Set Finish: Black Include handles Note: Door Set Required Door Frame with Barrier

Click to see Barrier & Door Frame

Black Barrier Only

Finish: Matte Black

Door Frame with Black Barrier

Finish: Matte Black
Door frame with Barrier required for door set

Click to see Steel Frame and Trim

Steel Frame, Black

Finish: Matte Black
3-piece outer frame
Transitions appliance to adjoining surface
Easy Install Design

Steel Frame, Hammered Pewter

Finish: Hammered Pewter
3-piece outer frame
Transitions appliance to adjoining surface
Easy Install Design

Trim Kit, Bottom

Available in hammered pewter
Bottom trim completes the fourth side of the color frame.

Click to see Control Options

	FRBC Battery Operated On or Off Remote Control Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve) Does not require running wire to the fireplace Requires batteries for the receiver and for the handheld remote Operates during power outages
	FRBTC2 Battery Operated Thermostat Remote Control Type: Remote Control Millivolt Control Options Only Turns heater adjusts Thermostat Battery-operated remote control
	FREC Electric On-Off Remote Control with Battery Transmitter Millivolt Control Options Only Remote control with Battery transmitter for Empire remote-ready appliances Easy and convenient to use The receiver must be plugged in.
	FRBTPS Battery Operated Programmable Touch Screen Remote Control Type: Remote Control Millivolt Control Options Only Programmable and easy to use Battery-operated remote control
	FWS1 Wall Switch On/Off On-Off wall switch for Empire remote-ready appliances Mounts conveniently on wall
	TMV Wall Thermostat Reed Switch Wall thermostat with reed switch for Empire remote-ready appliances Mounts conveniently on wall
	TRW Wall Thermostat Wireless Remote Wall thermostat with wireless remote for Empire remote-ready appliances Thermostat mounts conveniently on wall
	Variable Remote for Intermittent Pilot (Natural Gas / Propane) Model: RVKN - Natural Gas Model: RVKP - Propane Type: Remote Kit Variable Flame Height Kit (Incl stepper motor, Thermostat Remote, and Wiring)

	Decorative Louvers Decorative arch louvers Finish: Matte Black
	Auto Blower Variable-speed blower Includes temperature switch Increases overall working efficiency of the fireplace
	Flexible 24" Stainless Steel Gas Line Flexible Fas Line Finish: Stainless Steel Ideal for the connection of a variety of gas appliances
	Platinum Embers Platinum glowing fireplace embers Can be placed directly on the burner Includes approximately 1 gram of ember material
	Ember Kit Comes with Traditional Log Burnt Log Pieces, White Ash and Lava Rock Included
	Conversion Kits Natural Gas to Propane Propane to Natural Gas For use with Millivolt & Intermittent Pilot Control For Tahoe Direct Vent Deluxe Fireplaces

WARRANTY

10-year limited warranty on combustion chamber; limited lifetime on glass
All other parts carry a 3-year limited warranty
All Remote Controls carry a 1-year limited warranty

Shipping	This item ships to
Delivery	Estimated between FRI Apr 04 and TUE Apr 08. Will usually ship within 1 business day.
