Dimplex 42" Revillusion Built-In Electric Firebox with Weathered Concrete - RBF42WC

Building on the innovative Revillusion® ThruView™ full-depth design, the new Weathered Concrete Series strikes a more contemporary chord. The poured concrete features subtle detail and a neutral palette that provides a dramatic contrast for the lifelike flames. This playful use of an industrial material is a unique way to give any space some stylish, industrial flair. Easily update and finish an existing fireplace with Revillusion technology.

Best Features

• Revillusion® Flame Technology - Flames are larger, brighter, and more random, appearing from within the logs.

• Mirage™ Flame Panel - Partially frosted acrylic panel is clearly better than a mirror, showing only dazzling flames and no reflections.

• ThruView™ Full-depth Design - See clear through the flames to the back of the firebox for a more authentic experience.

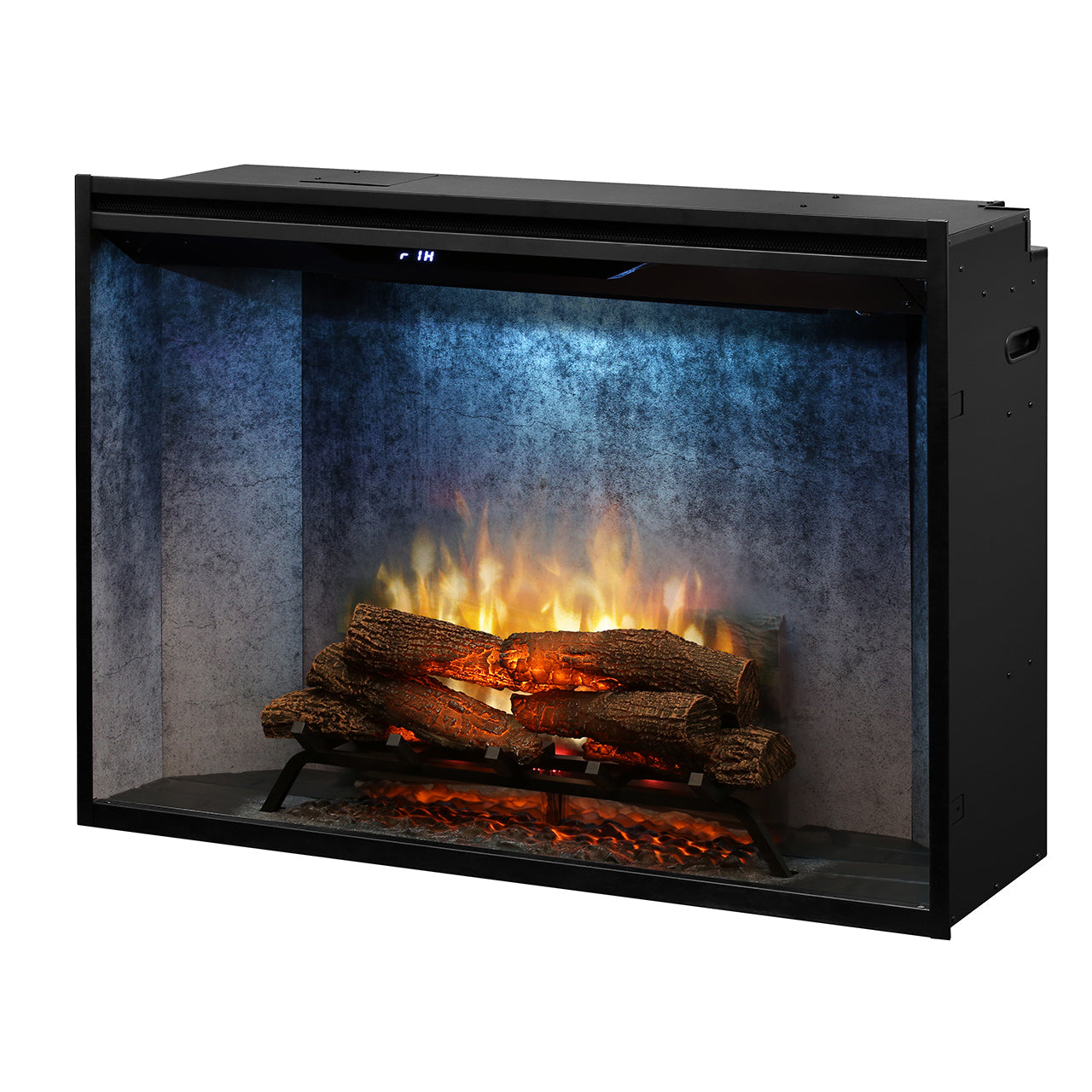

• Mood Lighting - Customize the firebox glow with a choice of warm hues, plus midnight mode.

• Color Enhancement - Adjust the flame base color to red or blue.

• Realogs® Plus - A full grate of life-size hardwood-cast logs, tiered for greater depth.

• Full Surround Firebox - More authentic day or night; 270-degree surround with natural soot markings.

• Brightness and Flicker - Adjust light level to suit the room and choose a flicker effect for enhanced firelight.

• Ambient Light Sensor - Automatically adjusts firebox light to suit the room day to night.

• Quick and Easy Installation - Simply frame, wire, and finish – no venting, gas lines, or safety screens.

• Primary Heat - Option to use 240 volt supply for up to 8,800 BTU - use as part of the primary heating plan; heater also operates without flame and can be deactivated.

• All-season Flames - Enjoy the unique charm of a fireplace 365 days a year using the flames without the heat.

• Direct-wire - Designed to be direct-wired to a 120, 208, or 240-volt circuit for a seamless look (optional plug kit available).

• Low Carbon Footprint - The most sustainable fireplace option; no emissions and 100% efficient.

Product Details

• Finish: Black
• Fuel Bed: Logs
• Installation: Wall or Fireplace
• Mounting Options: Fully Recessed

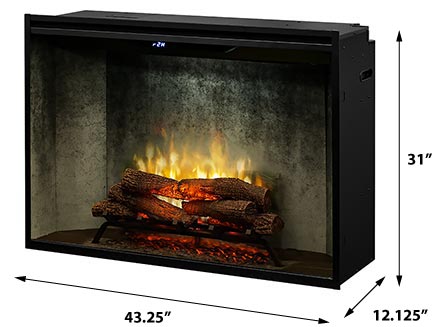

• Dimensions: 43.25" W x 31" H x 12.125" D
• Weight: 88.6 lbs
• Warranty: 2-Year Limited

Electrical Details

• Volts: 120/ 208/ 240
• Amps: 10.8/ 9.4/ 10.7
• Watts: 1440/ 1975/ 2575
• Wiring: Direct-Wire or Plug Kit
• BTU Output: 4400/ 6745/ 8794
• Supplemental Heating Area: 800 sq. ft.
• Heat Location: Front vent heater at top of unit
• Vent Type: Ventless
• Bulb Type: LED
• Remote Control Options: Multi-function
• Certified to Meet UL & CSA Standards

Product Manuals:

• RBF42WC Revillusion Firebox

• Owner's Manual
